Automatic Voltage Regulator

34 Products

Verified Suppliers

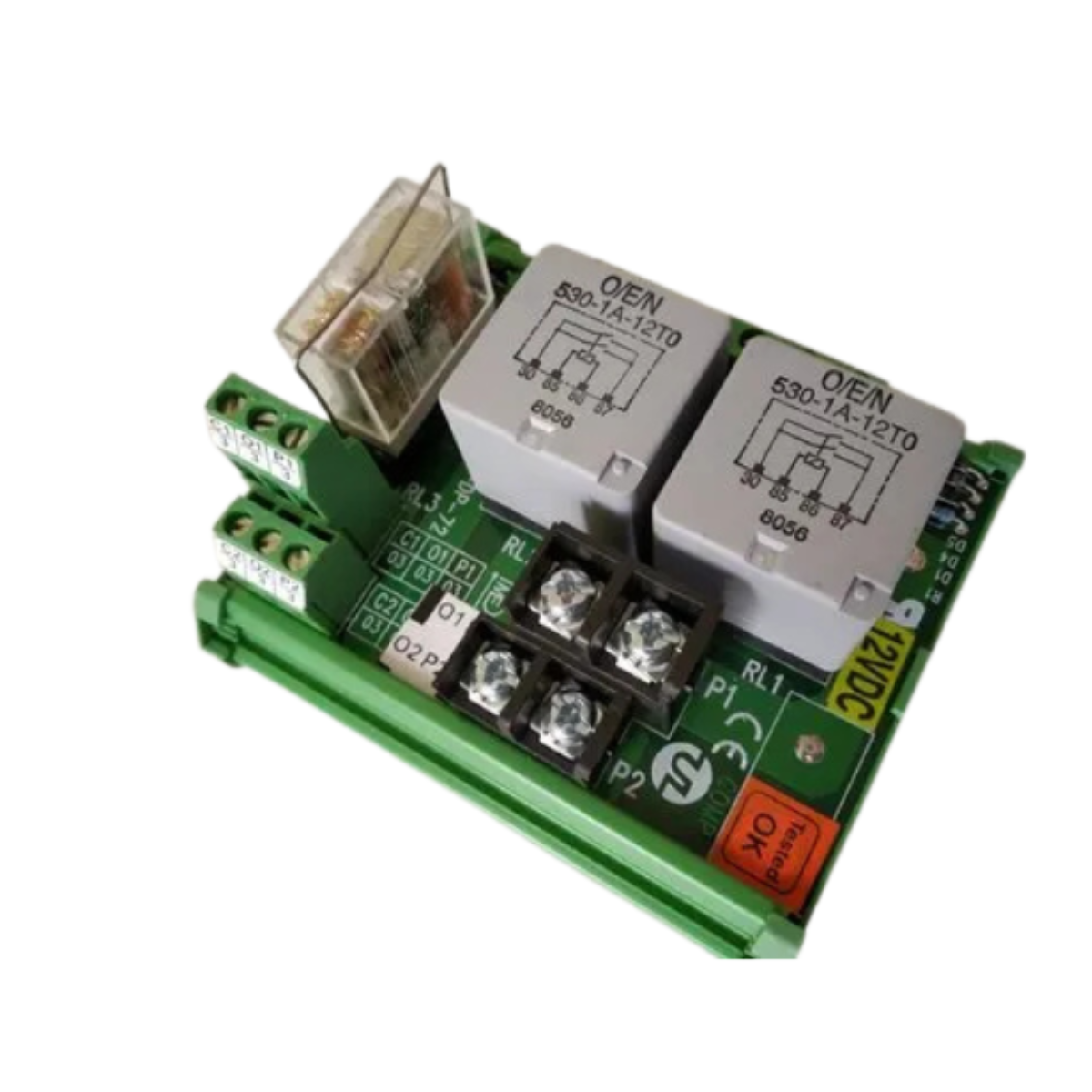

UI 1CH 12V Genset Relay Card Single Channel Relay Module for Generator Control

UI 1CH 12V Genset Relay Card Single Channel Relay Module for Generator Control

₹700

Specification	Details
Product Type	Genset Relay Card
Model / Type	UI 1CH
Channel	1 Channel
Operating Voltage	12V DC
Relay Function	Electrical Switching
Application	Genset and Generator Control Systems
Installation	Control Panel / Electrical Assembly
Product Category	Relay Module / Generator Control Component
Usage	Generator Automation, Control and Replacement

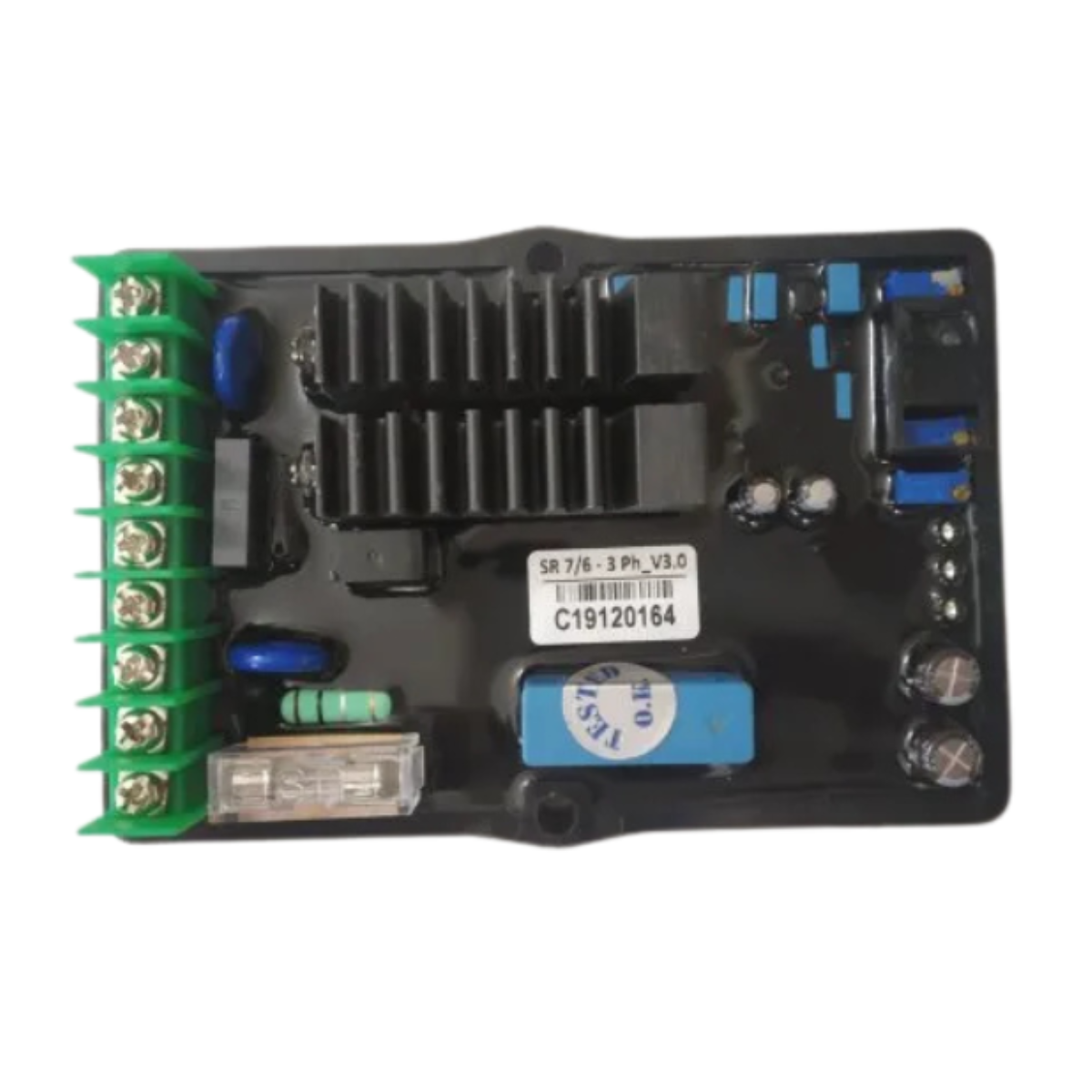

Three Phase CG 76 3PH AVR Automatic Voltage Regulator 76 kVA Industrial Voltage Stabilizer

Three Phase CG 76 3PH AVR Automatic Voltage Regulator 76 kVA Industrial Voltage Stabilizer

₹5,400

Specification	Details
Product Name	Three Phase CG 76 3PH AVR
Product Type	Automatic Voltage Regulator
Phase	Three Phase
Model	CG 76 3PH
Rated Capacity	76 kVA
Frequency	50 Hz
Application	Industrial and Commercial Power Regulation
Voltage Regulation	Automatic
Suitable Equipment	CNC Machines, Automation Systems, Motors, Pumps, Industrial Machinery
Installation	Indoor Industrial Installation
Operation	Automatic Voltage Control

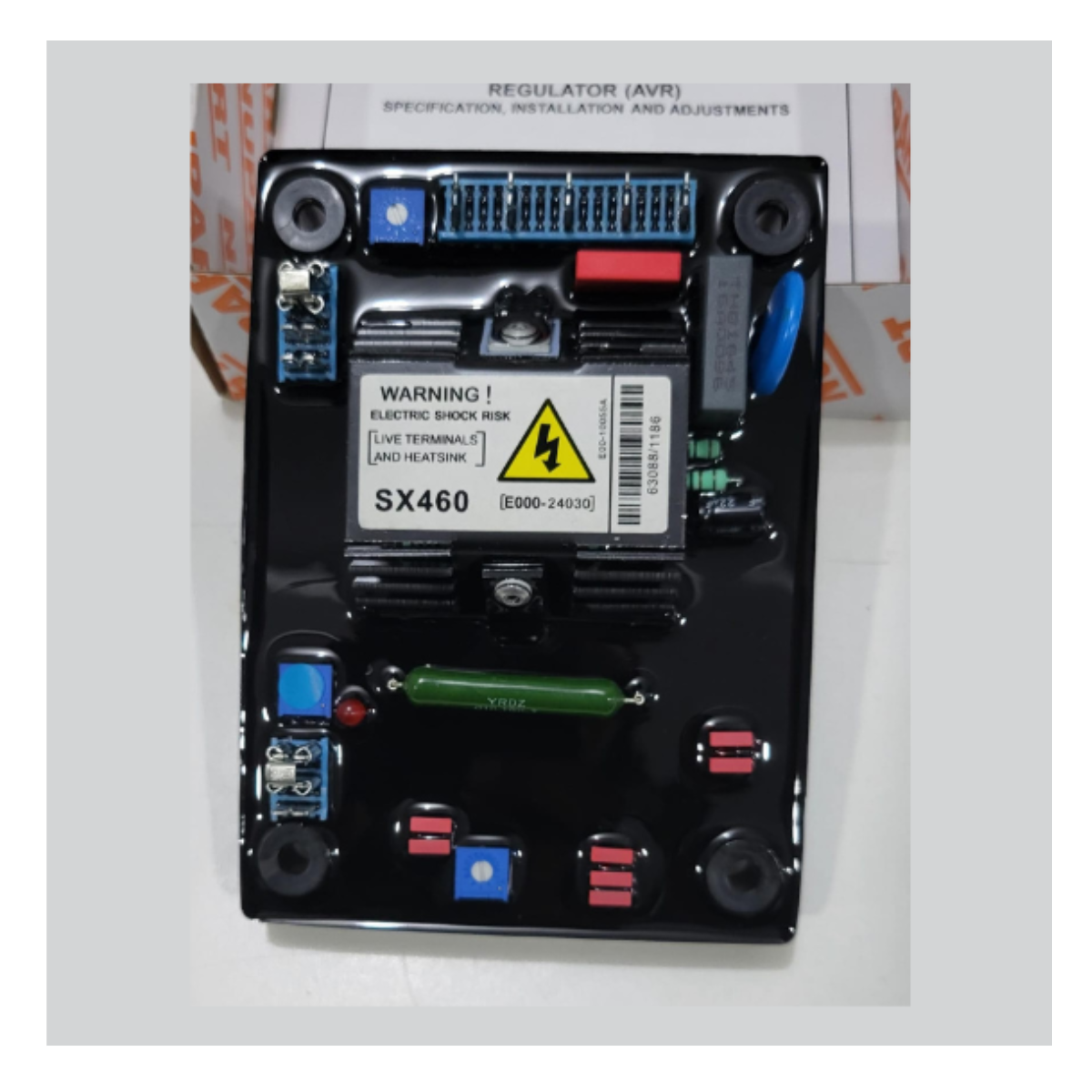

Stamford SX460 Automatic Voltage Regulator for Generator Alternators

Stamford SX460 Automatic Voltage Regulator for Generator Alternators

₹3,500

Specification	Details
Product Model	SX460
Product Type	Automatic Voltage Regulator (AVR)
AVR Type	Analogue
Sensing	2-Phase Sensing
Excitation Type	Self-Excited
Application	Brushless Generator Alternators
Sensing Input Voltage	95–132 VAC or 190–264 VAC
Input Frequency	50–60 Hz
Phase	Single Phase Input
Maximum Output Voltage	90 VDC at 207 VAC input
Continuous Output Current	4 A DC
Intermittent Output Current	6 A for 10 seconds
Minimum Field Resistance	15 Ω
Voltage Regulation	±1.0%
Thermal Drift	0.05% per °C
Typical AVR Response	20 ms
External Voltage Adjustment	±10%
Under-Frequency Protection	95% Hz Set Point
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +80°C

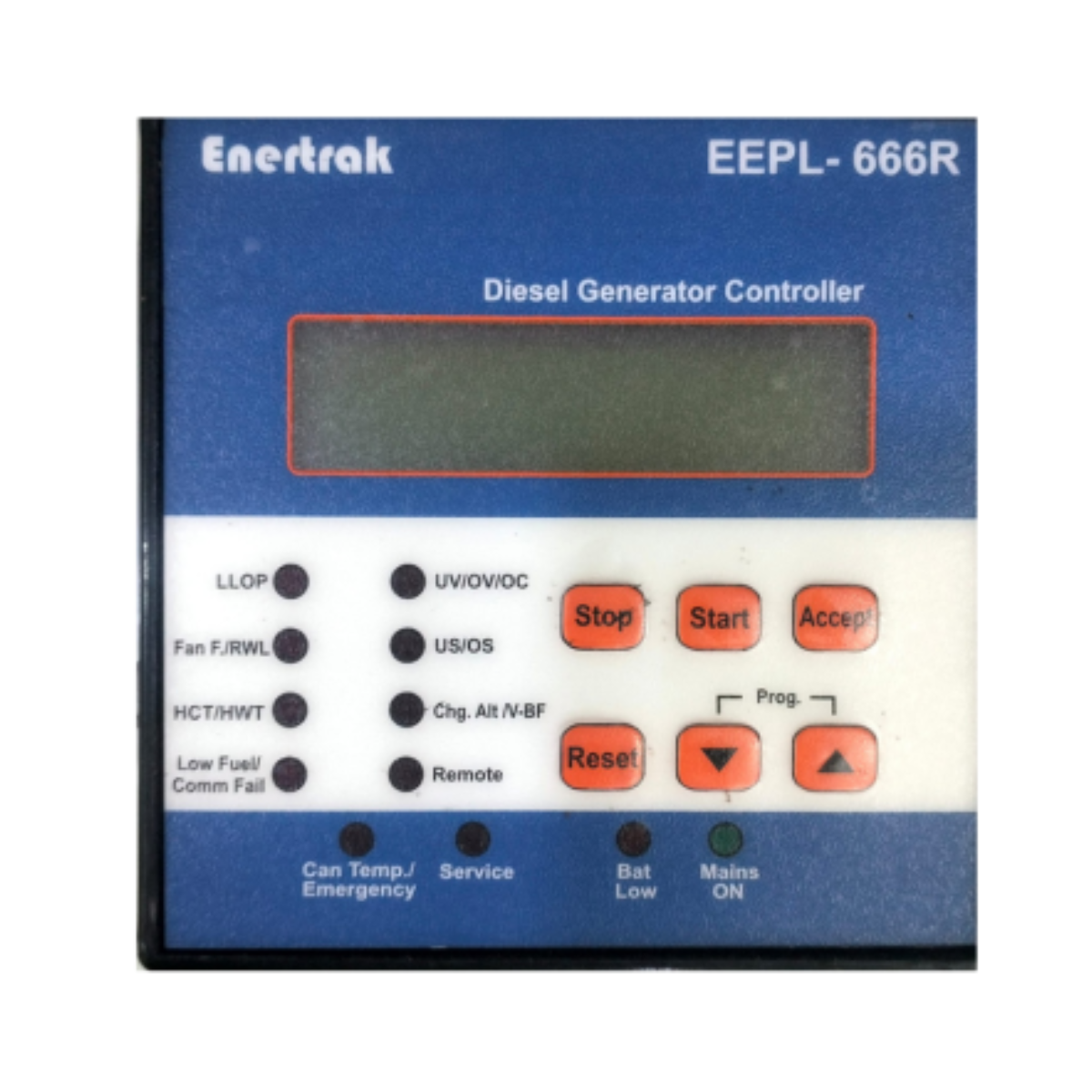

Semi-Auto Controller EEPL-666R Microprocessor Based DG Engine Protection Controller

Semi-Auto Controller EEPL-666R Microprocessor Based DG Engine Protection Controller

₹8,500

Specification	Details
Product Type	Semi-Auto DG Controller
Model	EEPL-666R
Controller Type	Microprocessor Based
Application	Diesel Generator Set Engine Protection and Control
Display	2 Row, 16 Character LCD
Analog Inputs	3 Resistive Type
Digital Inputs	6
Fuel Pump Control	Manual and Automatic
Engine Control	Start, Stop and Idle Control
Monitoring	Oil Pressure, Water Temperature, Fuel Level and Battery Status
Fault Logging	Fault History Logging
Cooling Selection	Programmable Water / Air Cooling
Phase Selection	Programmable 1 Phase / 3 Phase
DC Supply Range	8 V to 32 V DC
Overall Size	96 × 96 × 65 mm
Panel Cutout Size	92 × 92 mm
Mounting	Panel Mount

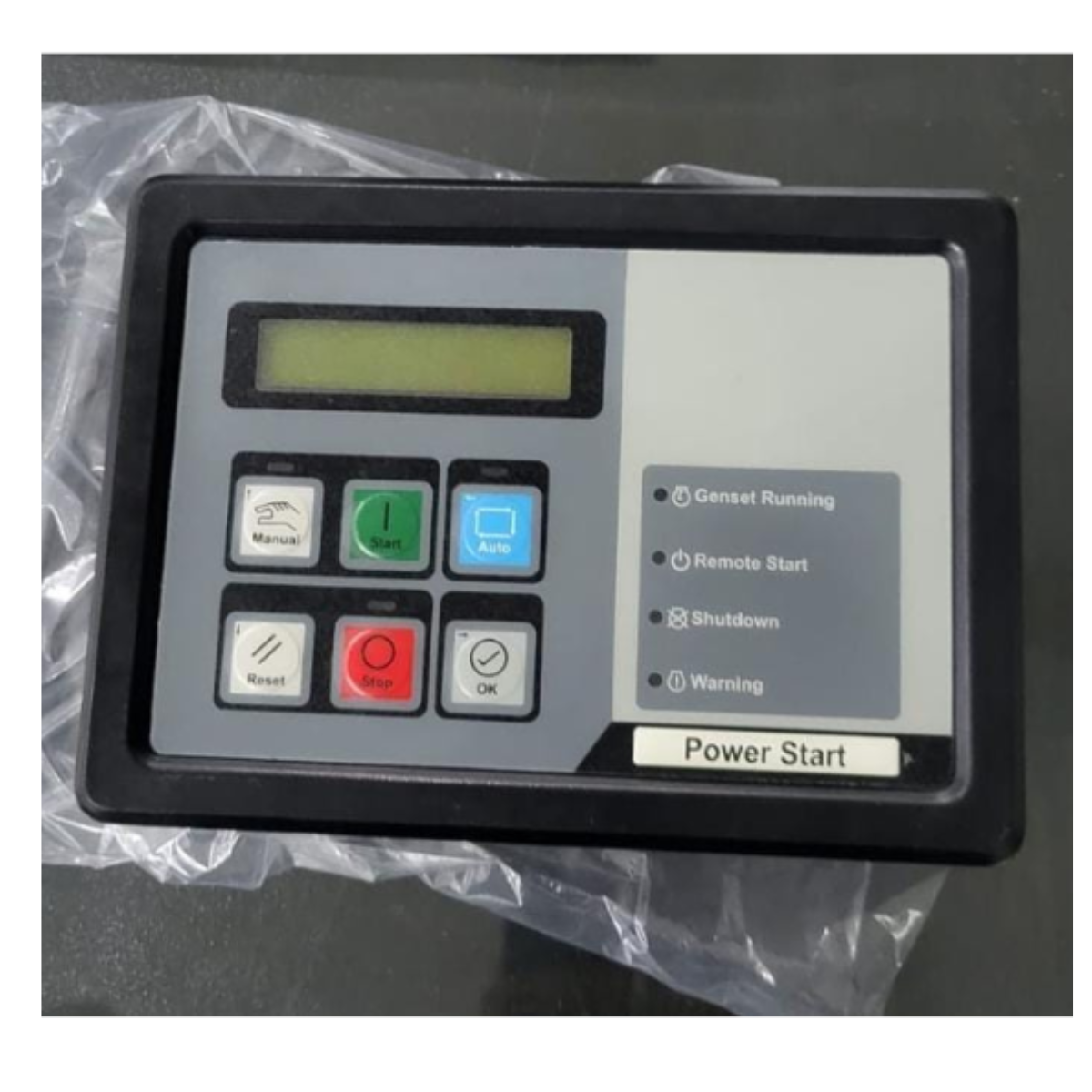

PSO 500 Controller for Cummins Genset, Automatic Plastic Generator Control Unit

PSO 500 Controller for Cummins Genset, Automatic Plastic Generator Control Unit

₹1,800

Product Name	PSO 500 Controller for Cummins
Model	PSO 500
Part Number	0300-6445
Product Type	Automatic Genset Controller
Brand	Cummins
Application	Diesel Generator / Genset
Display Type	Digital Single-Digit Display
Operating Frequency	50-60 Hz
Voltage	220 V
Phase	Single Phase
Material	Plastic
Controller Type	Automatic
Mounting	Generator Control Panel
Fuel Type	Diesel
Usage	Industrial and Commercial Generator Applications
Condition	New

Procom Econ-F Genset Controller Microprocessor Based Engine Control and Protection

Procom Econ-F Genset Controller Microprocessor Based Engine Control and Protection

₹6,000

Specification	Details
Brand	Procom
Model	ECON-F
Product Type	Engine / Genset Controller
Controller Type	Microprocessor Based
Display	128 × 64 Pixel Graphical LCD
RPM Measurement	MPU or Charging Alternator Pulse
Parameters Monitored	RPM, Battery Voltage, Fuel Level, Oil Pressure, Water Temperature, Engine Run Hours
Protection Functions	Low Lube Oil Pressure, High Water Temperature, Emergency Off, Charging Alternator Failure
Digital Inputs	Remote Start, Remote Stop, Oil Temperature, Low Fuel, High Water Temperature, Oil Pressure
Configuration	Menu Driven Field Configuration
Communication	RS485 / Optional Communication on Applicable Version
Mounting	Panel Mount
Application	Diesel Generator, Fire Engine, Pump Engine and Industrial Engine Systems
Country of Origin	India

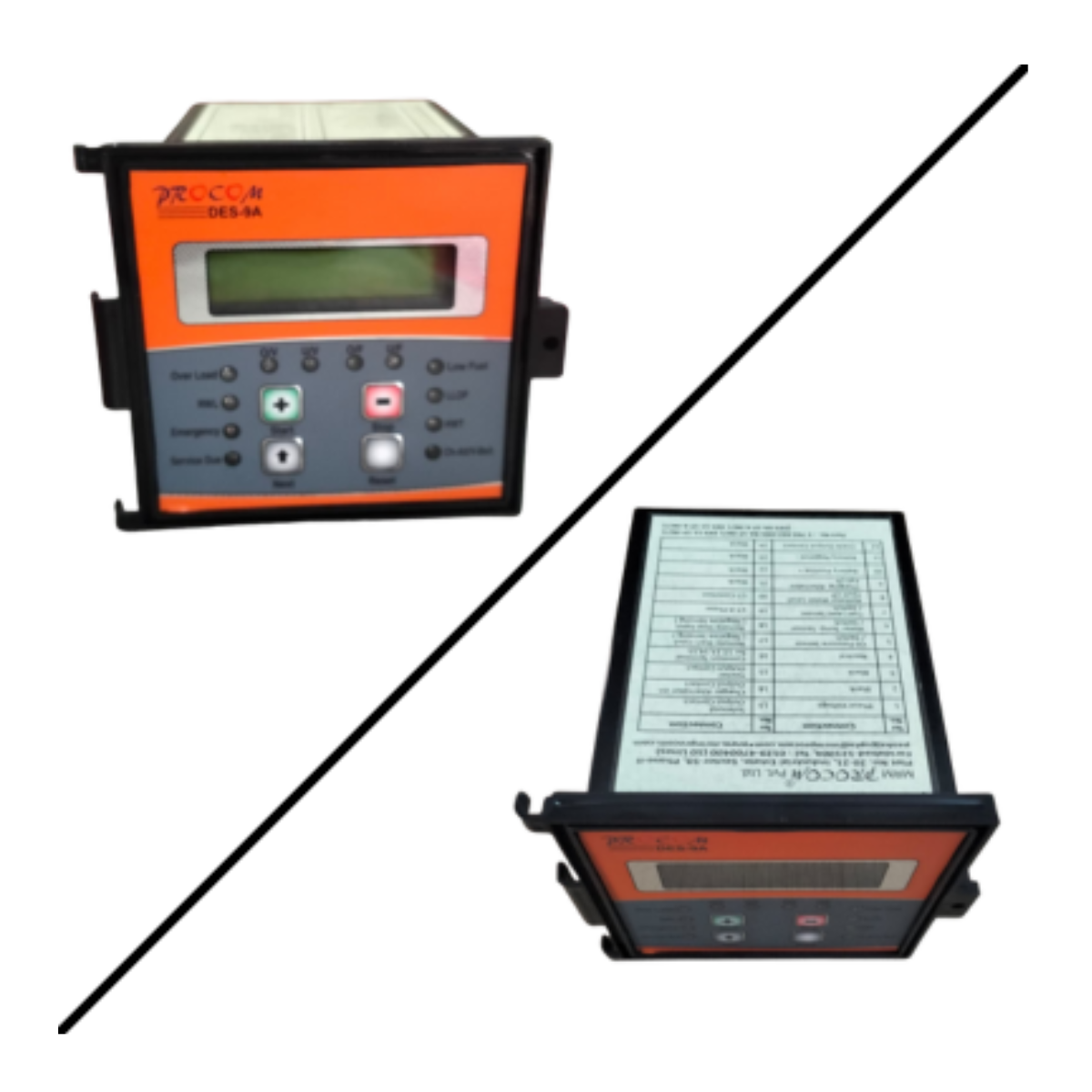

Procom DES 9A-3PK-6500T Genset Controller 3 Phase Panel Mount for Diesel Generator

Procom DES 9A-3PK-6500T Genset Controller 3 Phase Panel Mount for Diesel Generator

₹4,000

Specification	Details
Brand	Procom
Model	DES 9A-3PK-6500T
Product Type	Genset Controller
Application	Diesel Generator / Genset Control
Phase	3 Phase
Supply Voltage	12 VDC / 24 VDC
Control Function	Start / Stop
Protection Features	Over Voltage, Under Voltage, Over Speed, High Temperature, Low Oil
Mounting Type	Panel Mount
Display Type	LCD
Communication Port	Not specified
Packaging Type	Box

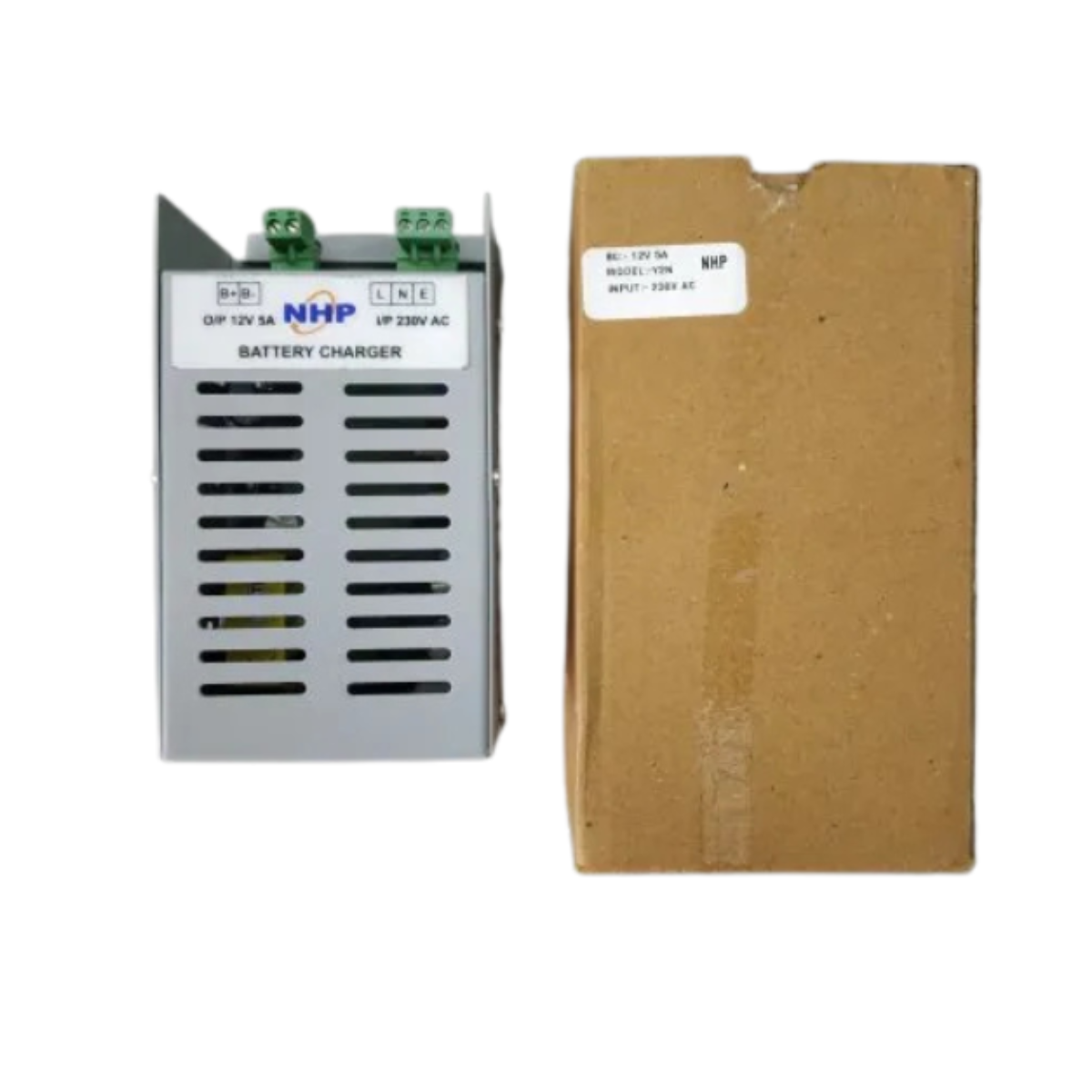

NHP 12V 5A Battery Charger Single Phase Metal Charger for Lead Acid Batteries

NHP 12V 5A Battery Charger Single Phase Metal Charger for Lead Acid Batteries

₹1,020

Product Name	NHP 12V 5A Battery Charger
Brand	NHP
Charger Type	Single Phase Battery Charger
Battery Voltage	12V DC
Maximum Charging Current	5A
Input Voltage	170V to 270V AC
Input Frequency	40Hz to 65Hz
Output Voltage	13.8V to 14V DC
Suitable Battery Type	Lead Acid Battery
Cooling Method	Natural Air Cooling
Line Regulation	<1%
Load Regulation	<1%
Ripple and Noise	150 mV p-p
Standby Power Consumption	3W
Operating Temperature	-20°C to 85°C
Input Protection	Over Voltage and Under Voltage Protection
Output Protection	Over Voltage, Overload and Short Circuit Protection
Battery Protection	Reverse Polarity Protection
Input-Output Isolation	3000V AC
Country of Origin	India
Warranty	1 Year Against Manufacturing Defects

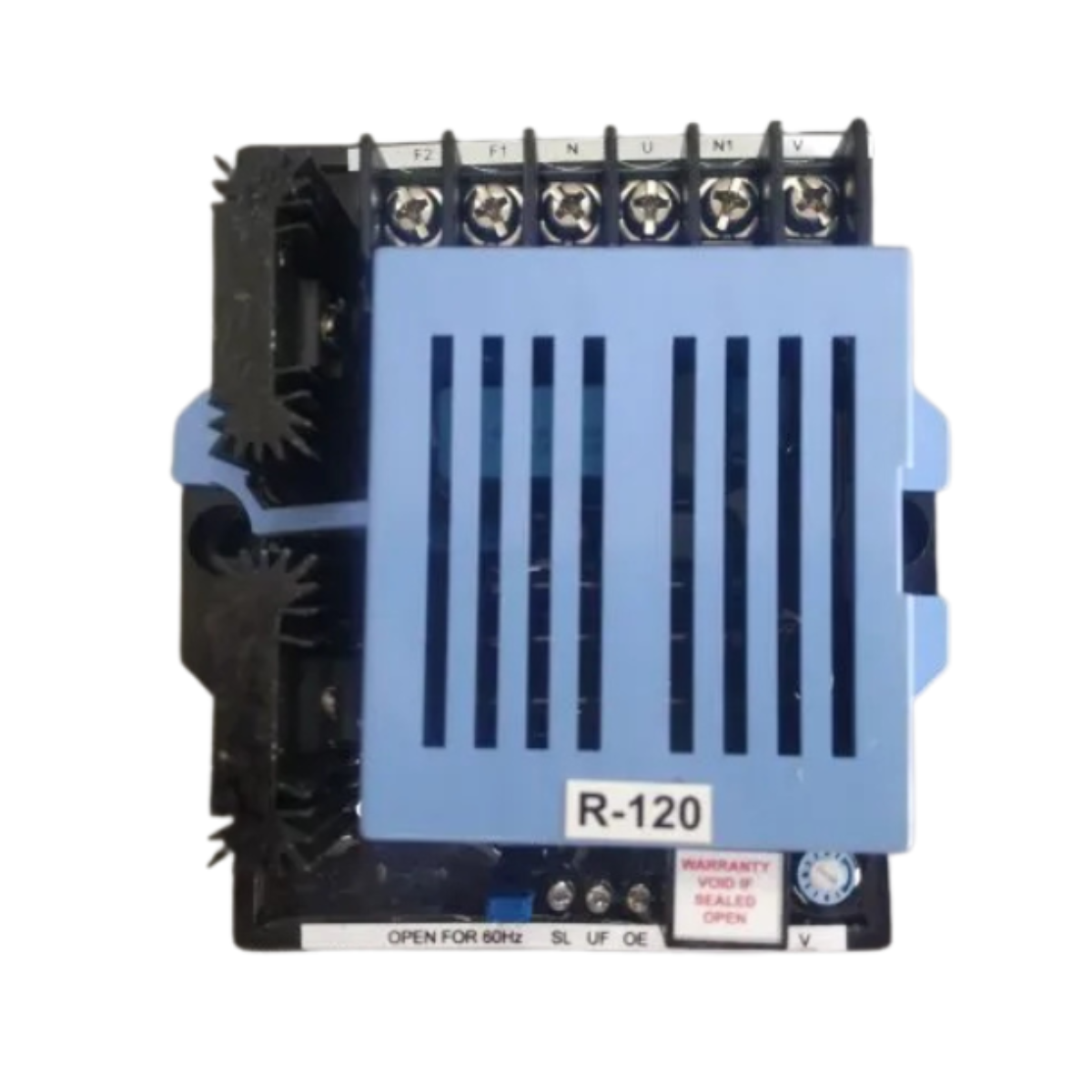

LS 120 Stamford AVR Automatic Voltage Regulator for Generator Applications

LS 120 Stamford AVR Automatic Voltage Regulator for Generator Applications

₹2,800

Specification	Details
Product Name	LS 120 Stamford AVR
Product Type	Automatic Voltage Regulator
Application	Generator and Alternator Systems
Function	Automatic Generator Voltage Regulation
Installation	Compatible Generator/Alternator System
Use	Generator Maintenance, Repair and Replacement
Product Model	LS 120
Compatibility	Verify with Generator/Alternator Model Before Installation
Voltage Sensing	As Per Product and Generator Specification
Excitation Requirement	As Per Compatible Generator Specification
Mounting	As Per Existing AVR Arrangement
Product Category	Generator Spare Parts and Accessories

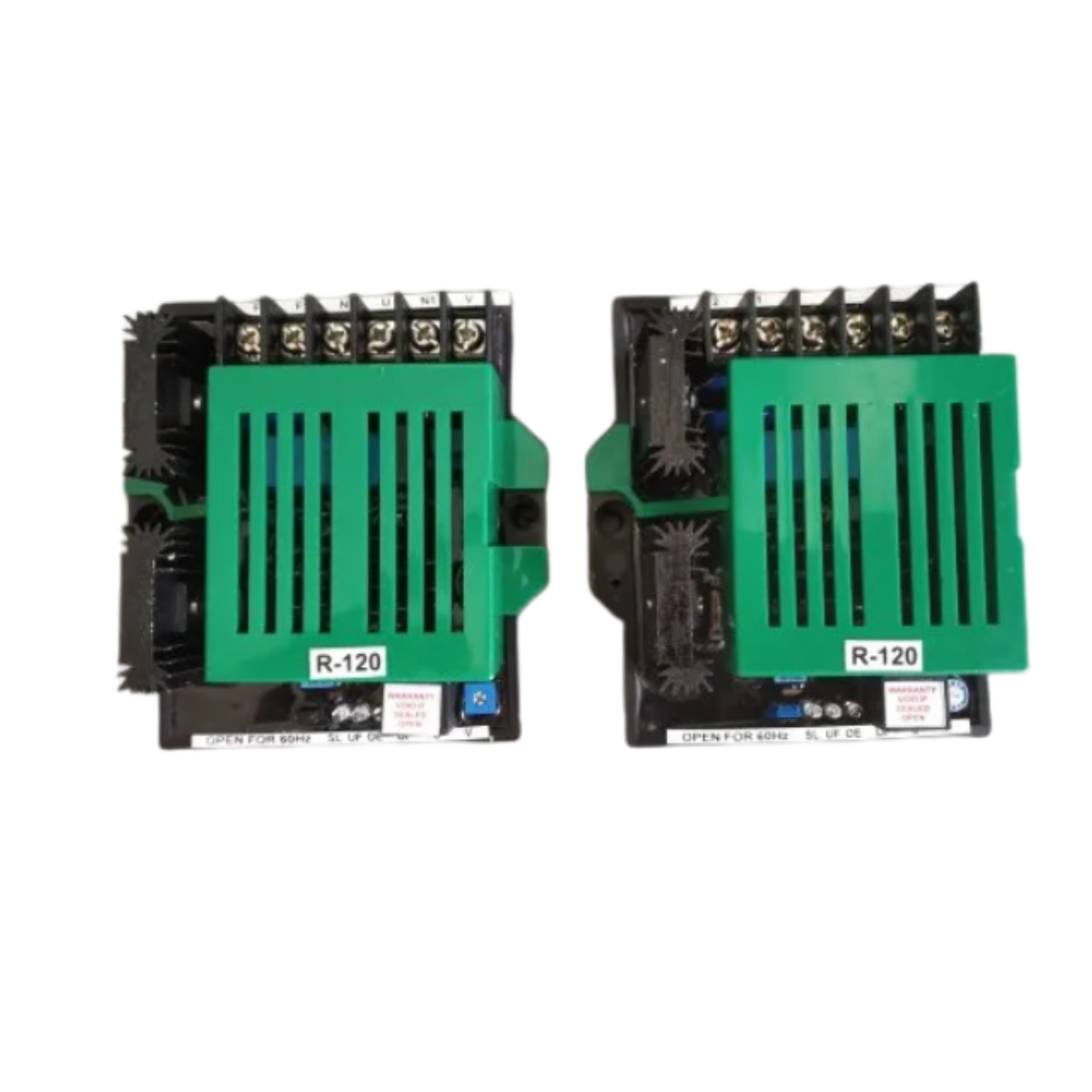

KOEL AVR R120 Generator Voltage Regulator 240 VAC 95 VDC for Diesel Gensets

KOEL AVR R120 Generator Voltage Regulator 240 VAC 95 VDC for Diesel Gensets

₹3,800

Specification	Details
Product Type	Automatic Voltage Regulator (AVR)
Model	R120
Application	Generator / Genset Voltage Regulation
Compatible Brand	KOEL Green / Kirloskar KOEL compatible applications
Input Voltage	240 VAC
Sensing Voltage	415 VAC
Output Voltage	95 VDC
Output Current	4 A continuous / up to 6 A for 30 seconds
Frequency	50/60 Hz
Voltage Regulation	±1%
Regulator Type	Automatic / Analog Voltage Regulator
Excitation Mode	Shunt
Mounting	Panel Mount
Primary Use	Diesel Generator Voltage Control

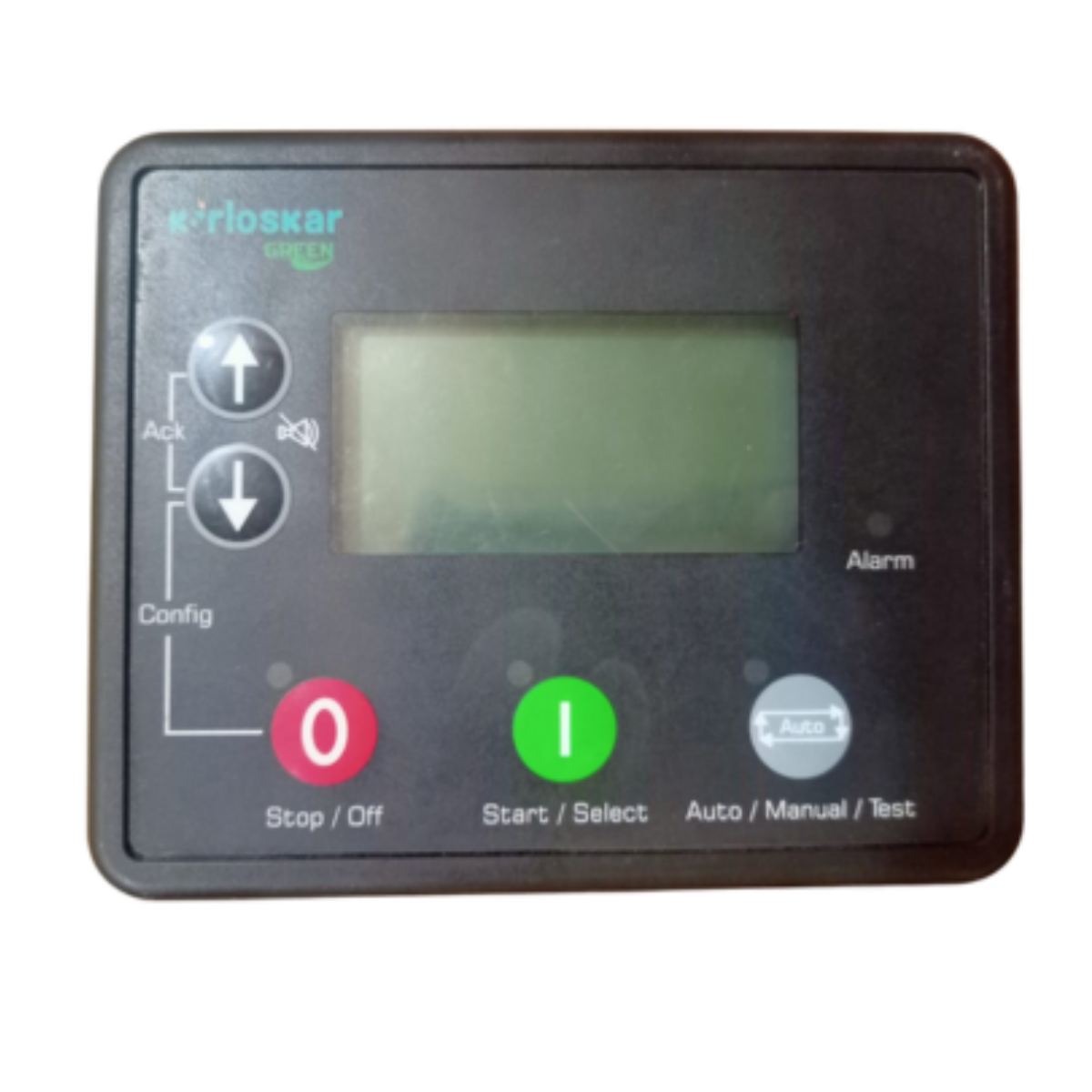

KG 645 Kirloskar Genset Controller 12V DC Automatic Generator Control Panel

KG 645 Kirloskar Genset Controller 12V DC Automatic Generator Control Panel

₹2,500

Specification	Details
Product Name	KG 645 Kirloskar Genset Controller
Model	KG 645
Product Type	Genset Controller
Application	Diesel and Gasoline Generator Sets
Genset Phase	1 Phase / 3 Phase
DC Supply Voltage	8 to 32 V DC
Generator Phase-to-Neutral Measurement	15 to 415 V AC RMS
Generator Phase-to-Phase Measurement	15 to 750 V AC RMS
Generator Frequency Range	3 to 75 Hz
Current Measurement	5 A Nominal CT Secondary
Digital Inputs	5
Communication	RS485, MODBUS RTU
USB Port	USB 2.0 for Configuration / Firmware
Display	Full Graphics Backlit LCD
Operating Modes	Automatic / Manual
Mounting Type	Panel Mount
Communication Mode	MODBUS RTU Slave

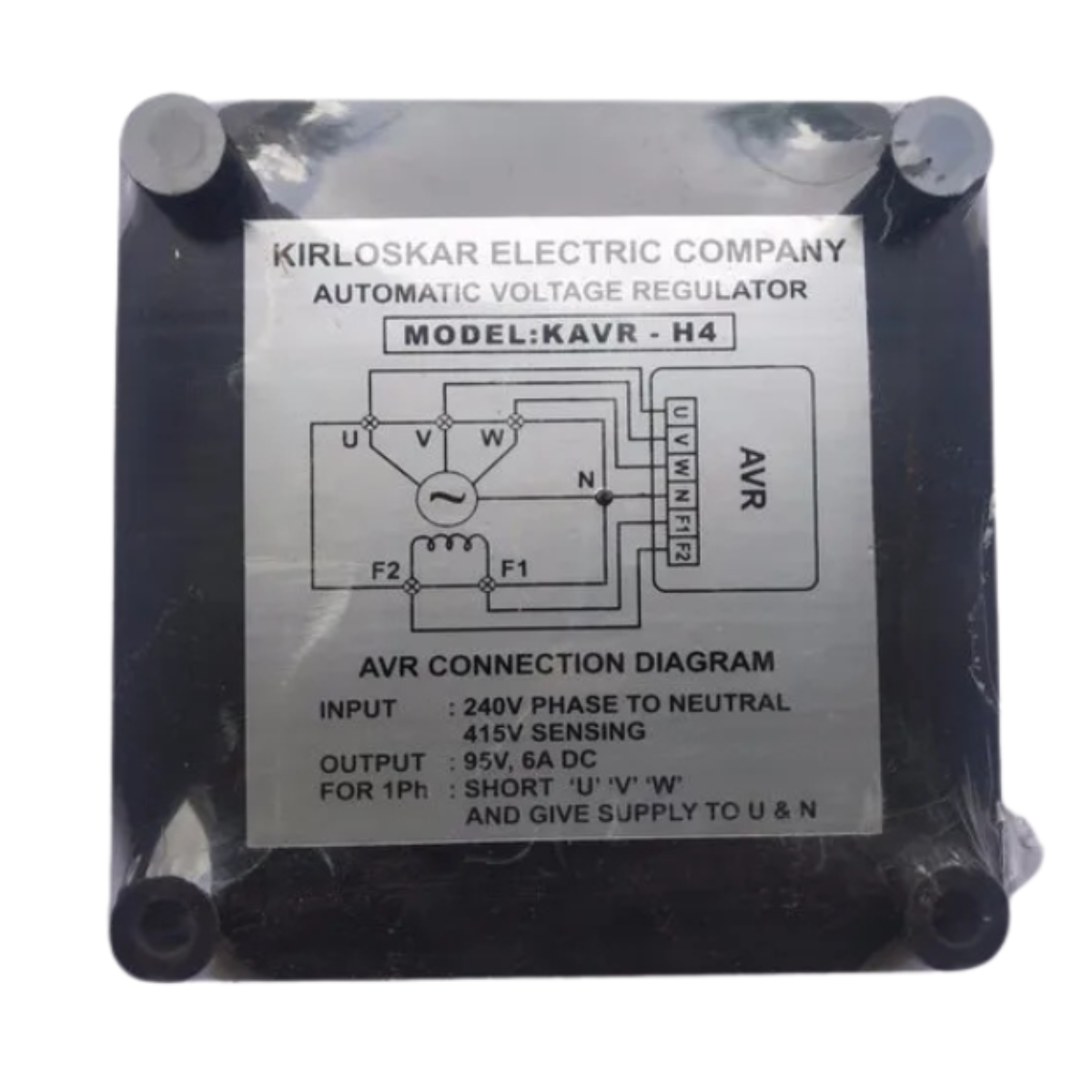

KAVR H4 Kirloskar Generator Voltage Regulator AVR 95V DC 6A for DG Sets

KAVR H4 Kirloskar Generator Voltage Regulator AVR 95V DC 6A for DG Sets

₹3,400

Specification	Details
Product Name	KAVR H4 Kirloskar Generator Voltage Regulator
Model Name/Number	KAVR-H4
Regulator Type	Automatic Voltage Regulator (AVR)
Compatible Brand	Kirloskar
Sensing Input Voltage	415 V AC
Rated Voltage	230 V
Output Voltage	95 V DC
Output Current	6 A DC
Frequency	50 Hz
Phase	Three Phase
Excitation Type	Brushless
Cooling Type	Air Cooled
Dimensions	11 × 11 × 1.5 Inch
Approx. Weight	220 g
Application	Industrial Generator and DG Set

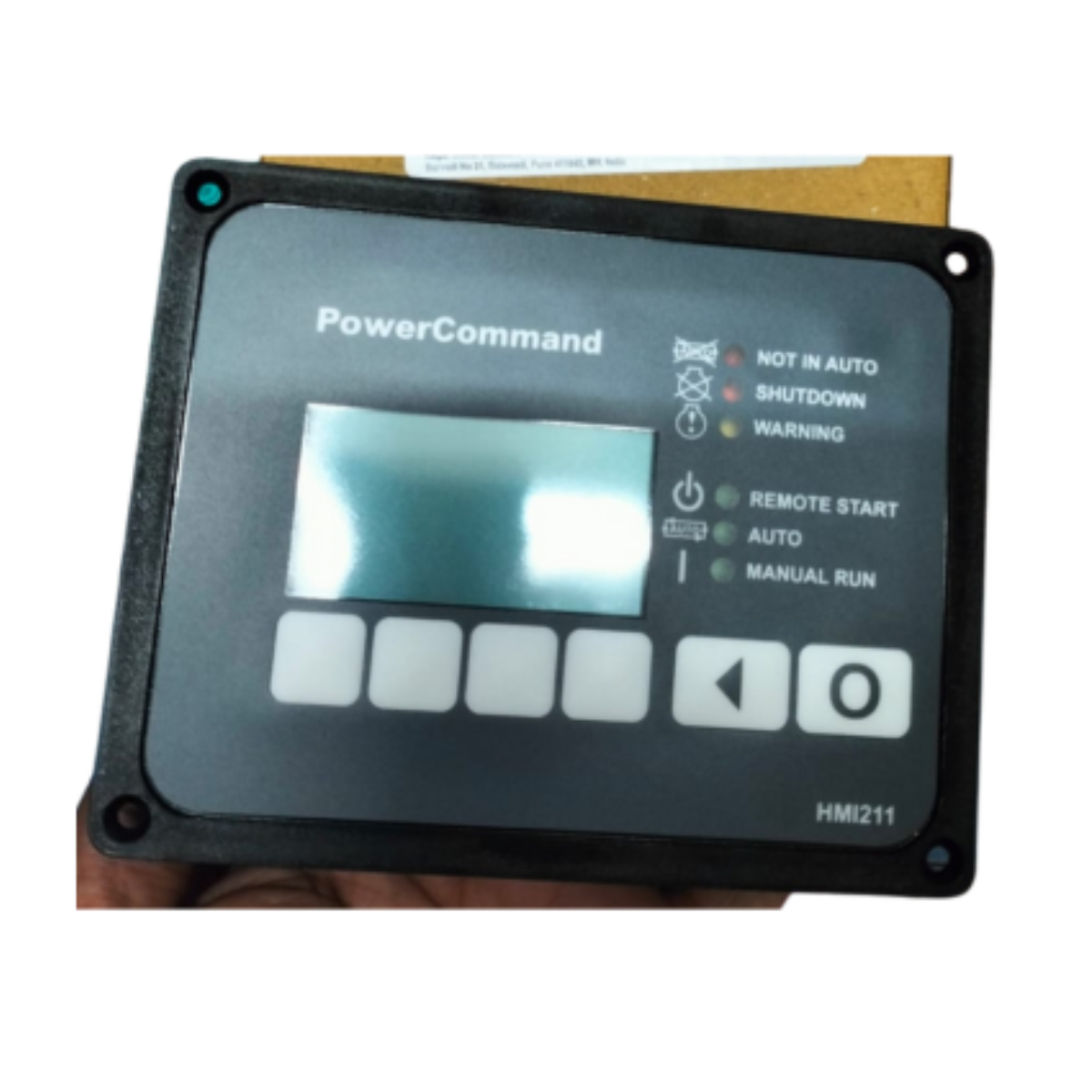

HMI211 Cummins Genset Controller PowerCommand Remote Panel 112 x 142 mm for Generator Monitoring

HMI211 Cummins Genset Controller PowerCommand Remote Panel 112 x 142 mm for Generator Monitoring

₹35,000

Specification	Details
Product Type	HMI 211 Remote Operator Unit
Brand	Cummins
Model	HMI 211
Application	Compatible Cummins Generator Sets
System Compatibility	PCC1302 / Compatible PowerCommand Systems
Communication Protocol	PCCNet
Display	Multi-line Display
Display Information	AC Voltage, Current, Power, Power Factor, Frequency and Engine Information
Control Functions	Basic Generator Control and Configuration
Controls	4 Multi-function Buttons, Back and Stop Buttons
Status Indicators	Not in Auto, Shutdown, Warning, Remote Start, Auto and Manual Run
Length	112 mm / 4.38 in
Width	142 mm / 5.55 in
Depth	35 mm / 1.50 in
Remote Installation Distance	Up to 1219 m / 4000 ft, subject to installation requirements
Part Number	0541-1394

GC1211 Mahindra Powerol Genset Controller

GC1211 Mahindra Powerol Genset Controller

₹9,000

Specification	Details
Product Model	GC1212
Product Type	E-Governing Genset Controller
Brand / Controller Manufacturer	SEDEMAC
Application	Diesel Generator Set Control
System Voltage	12V / 24V
Part Number	006024815H91
Controller Function	Electronic Engine Speed Governing
Suitable For	Compatible Genset and Generator Control Systems
Installation	Generator Control Panel
Product Model Code	GC1212

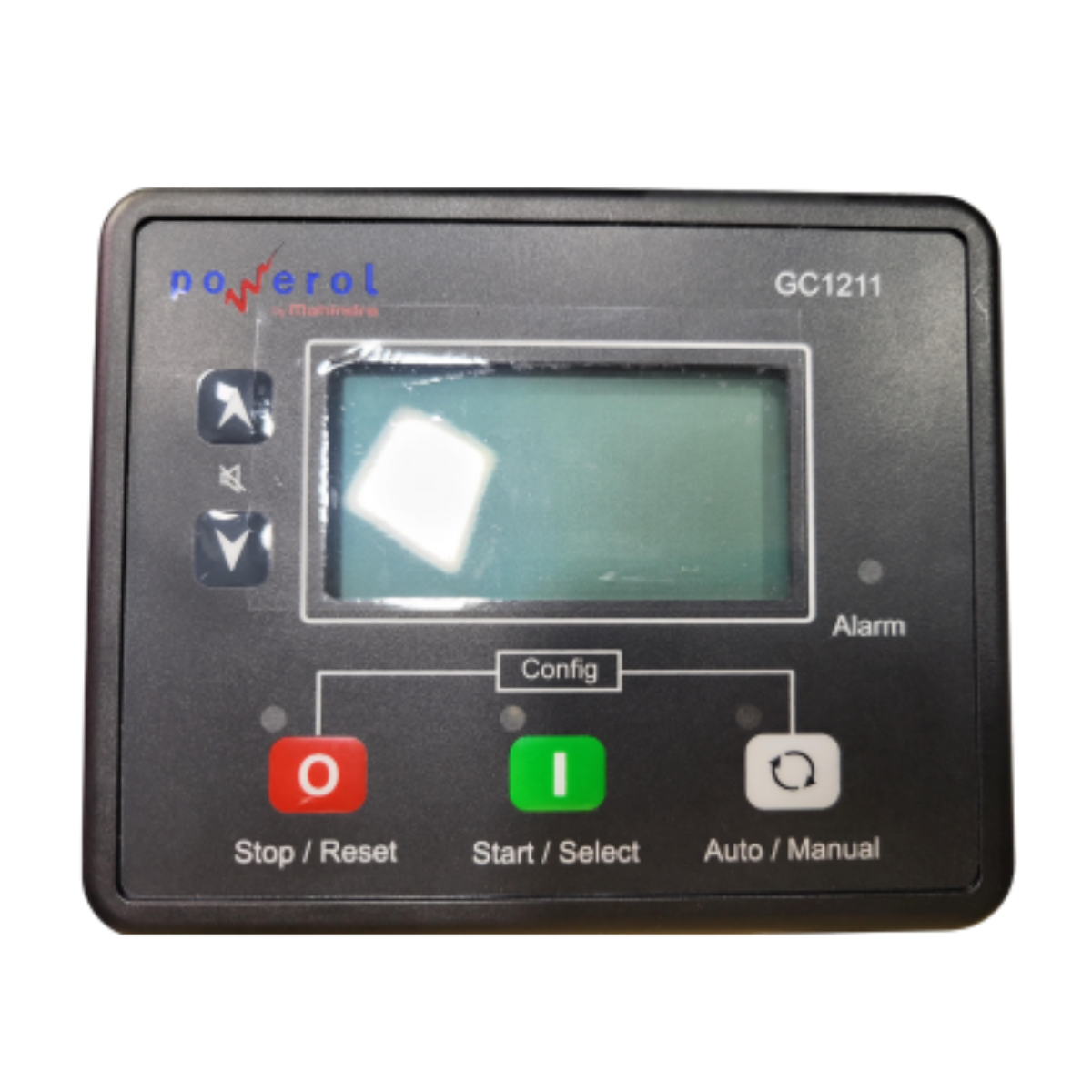

GC1211 Mahindra Powerol Genset Controller 24V DC Generator Control Module

GC1211 Mahindra Powerol Genset Controller 24V DC Generator Control Module

₹8,700

Specification	Details
Product Name	GC1211 Mahindra Powerol Genset Controller
Model	GC1211
Product Type	Genset Controller
Application	Diesel Generator Set Control
Compatible Brand	Mahindra Powerol
Controller Type	Engine and Genset Control Module
Supply Voltage	24V DC
Digital Inputs	5
Analog Inputs	3
Digital Outputs	6
Mounting	Control Panel Mount
Typical Use	DG Set Control, Monitoring and Replacement
Part Number	006024862H91
Controller Application	Retail DG / Compatible Powerol Gensets

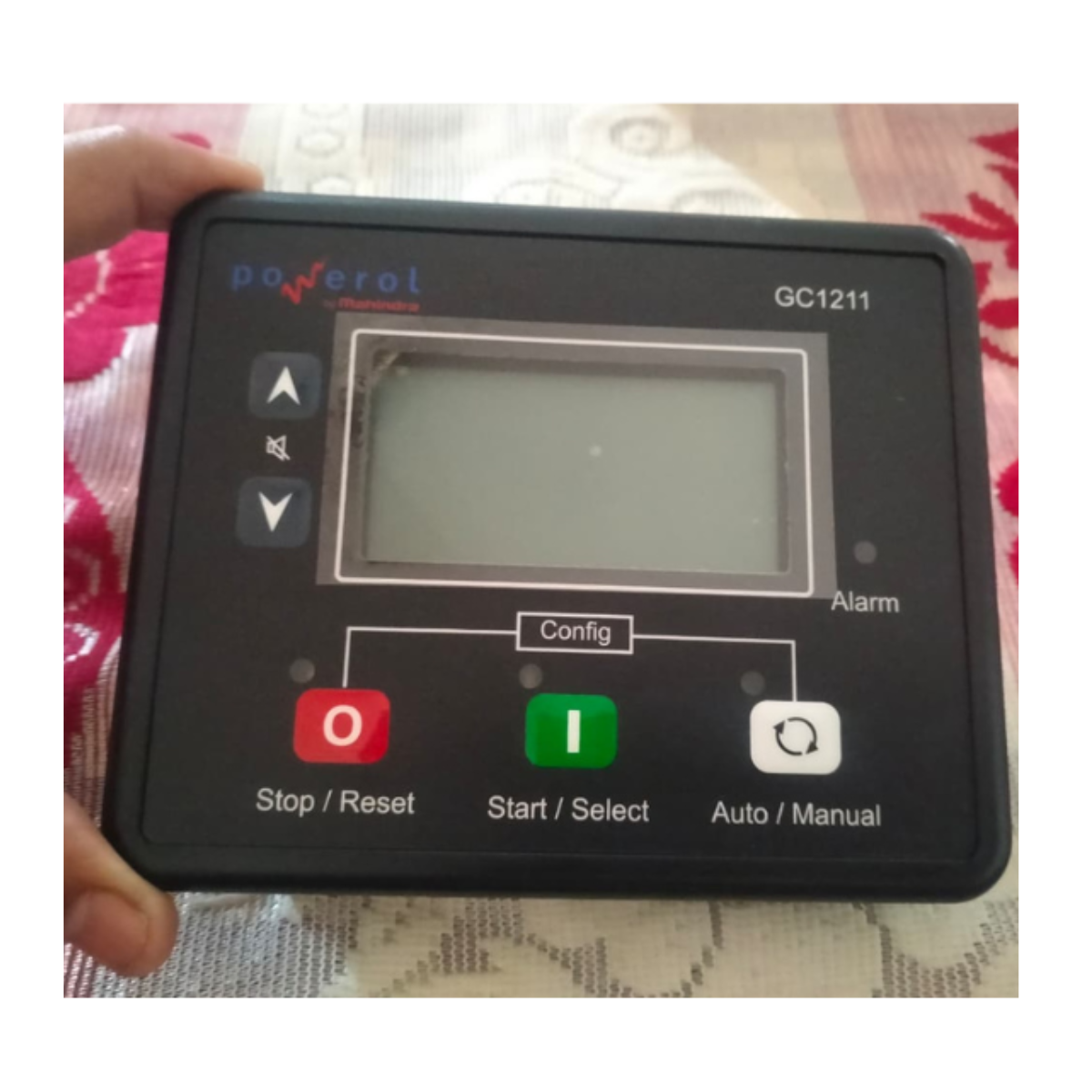

GC1211 Controller Genset Engine Controller 24V DC Generator Use

GC1211 Controller Genset Engine Controller 24V DC Generator Use

₹3,800

Specification	Details
Product Name	GC1211 Controller
Controller Type	Genset Engine Controller
Model Number	GC1211
Application	Generator / Genset Control
Operating Supply	24V DC
Digital Inputs	5
Analog Inputs	3
Analog Input Configuration	Can be configured as digital inputs where supported
Digital Outputs	6
Product Category	Generator Controller
Primary Use	Engine and Generator Control
Suitable For	Compatible Powerol and Genset Applications

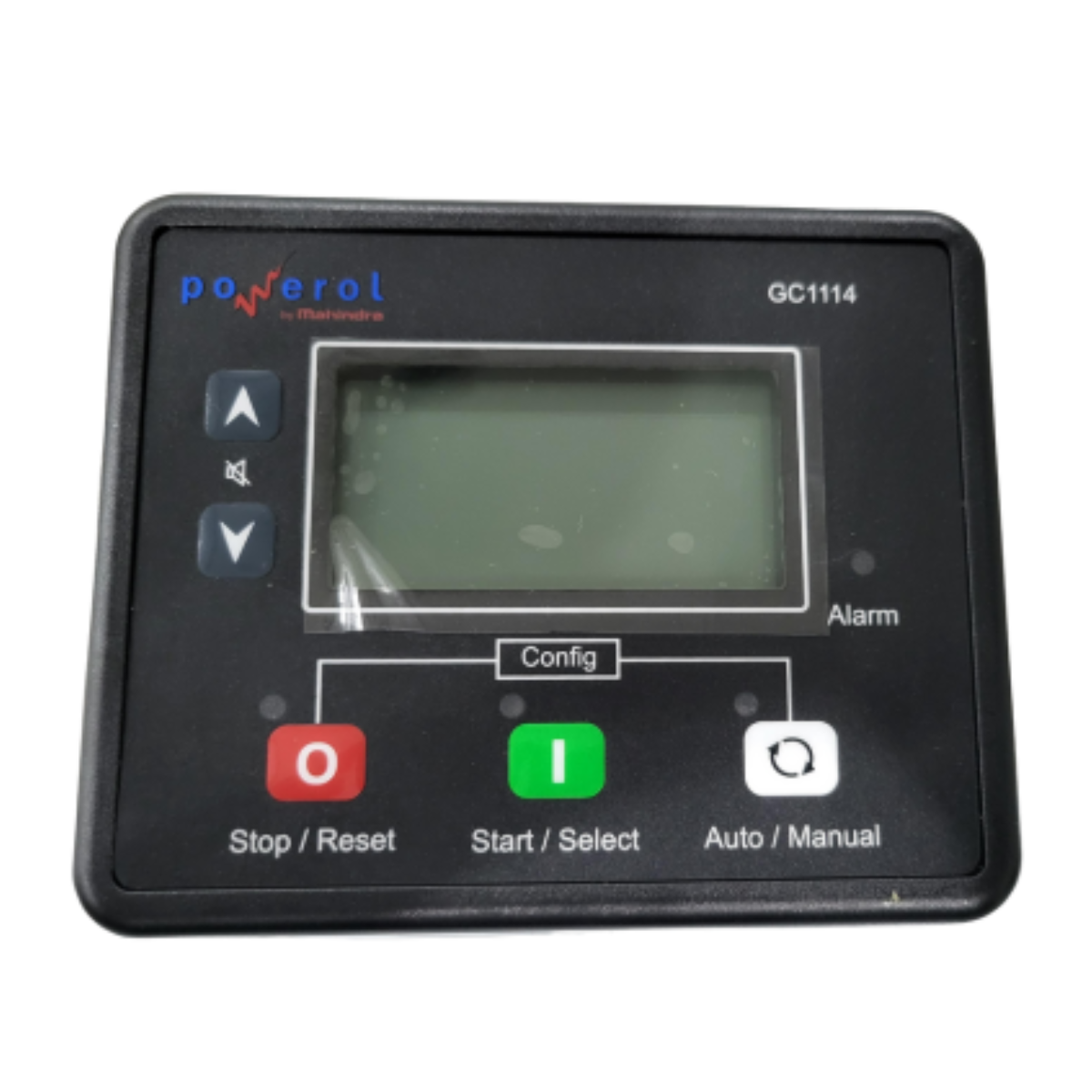

GC1114 Mahindra Powerol Genset Controller ARM Microprocessor LCD Display

GC1114 Mahindra Powerol Genset Controller ARM Microprocessor LCD Display

₹3,500

Specification	Details
Product Name	GC 1114 Mahindra Powerol Genset Controller
Model	GC1114
Product Type	Genset Controller
Controller Type	ARM Microprocessor Based
Display	Full Graphic Back-Lit LCD
Operating Modes	Auto and Manual
Start/Stop Functions	AMF, Remote Start/Stop and Cyclic Operation
Voltage Monitoring	Mains and Genset Voltage
Frequency Monitoring	Mains and Genset Frequency
Engine Monitoring	Analog Resistive Sensors and Digital Inputs
Auto Exercise	2 Preset Start/Stop Events
Totalizers	Starts, Running Hours, kWh and kVAh
Event Log	Up to 100 Entries with RTC
Configuration	PC or Control Keys
Password Protection	Multi-Level
Suitable Genset Range	10 kVA to 320 kVA
Application	Diesel Generator Sets and Backup Power Systems
Brand / System	Mahindra Powerol

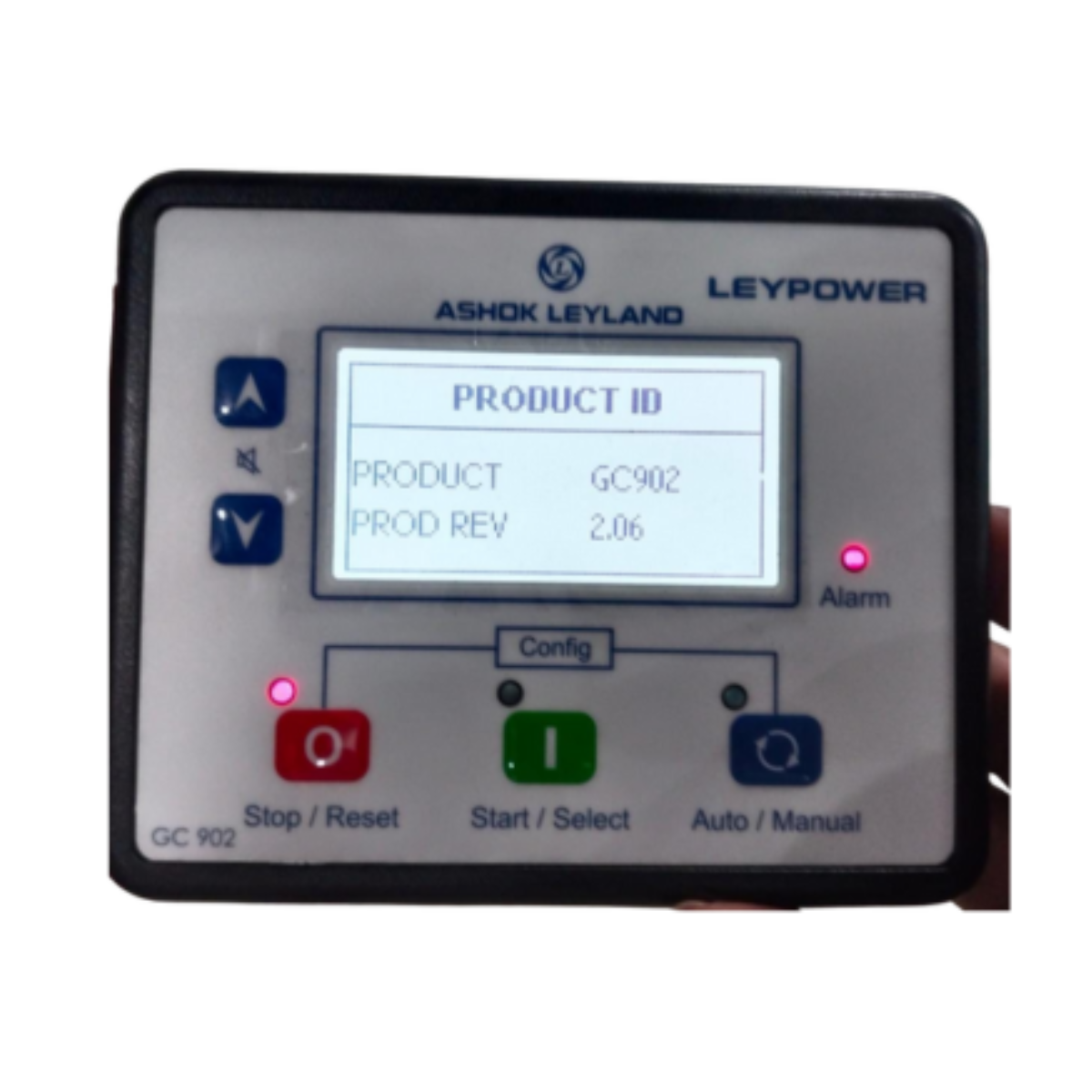

GC 902 Ashok Leyland Genset Controller, Digital Panel Type for Diesel Generator

GC 902 Ashok Leyland Genset Controller, Digital Panel Type for Diesel Generator

₹5,400

Specification	Details
Product Name	GC 902 Ashok Leyland Genset Controller
Controller Model	GC 902
Controller Type	Microprocessor-Based Genset Controller
Brand / Reference	Ashok Leyland / SEDEMAC GC902
Application	Compatible Diesel Generator Sets
Display	Digital Indication
Engine RPM Indication	Yes
Water Temperature Indication	Yes
Lube Oil Pressure Indication	Yes
Battery Charging Indication	Yes
Ammeter Indication	Yes
Engine Hour Meter	Yes
Auto Start / Stop	Supported
Fault Indications	Low Lube Oil Pressure, High Water Temperature, Low Fuel Level
Control	ON/OFF Key Switch, Ignition and Display Scroll Buttons
Engine Compatibility	Compatible Water-Cooled / Air-Cooled Engines
Mounting	Generator Control Panel
Reference Part Number	10009393

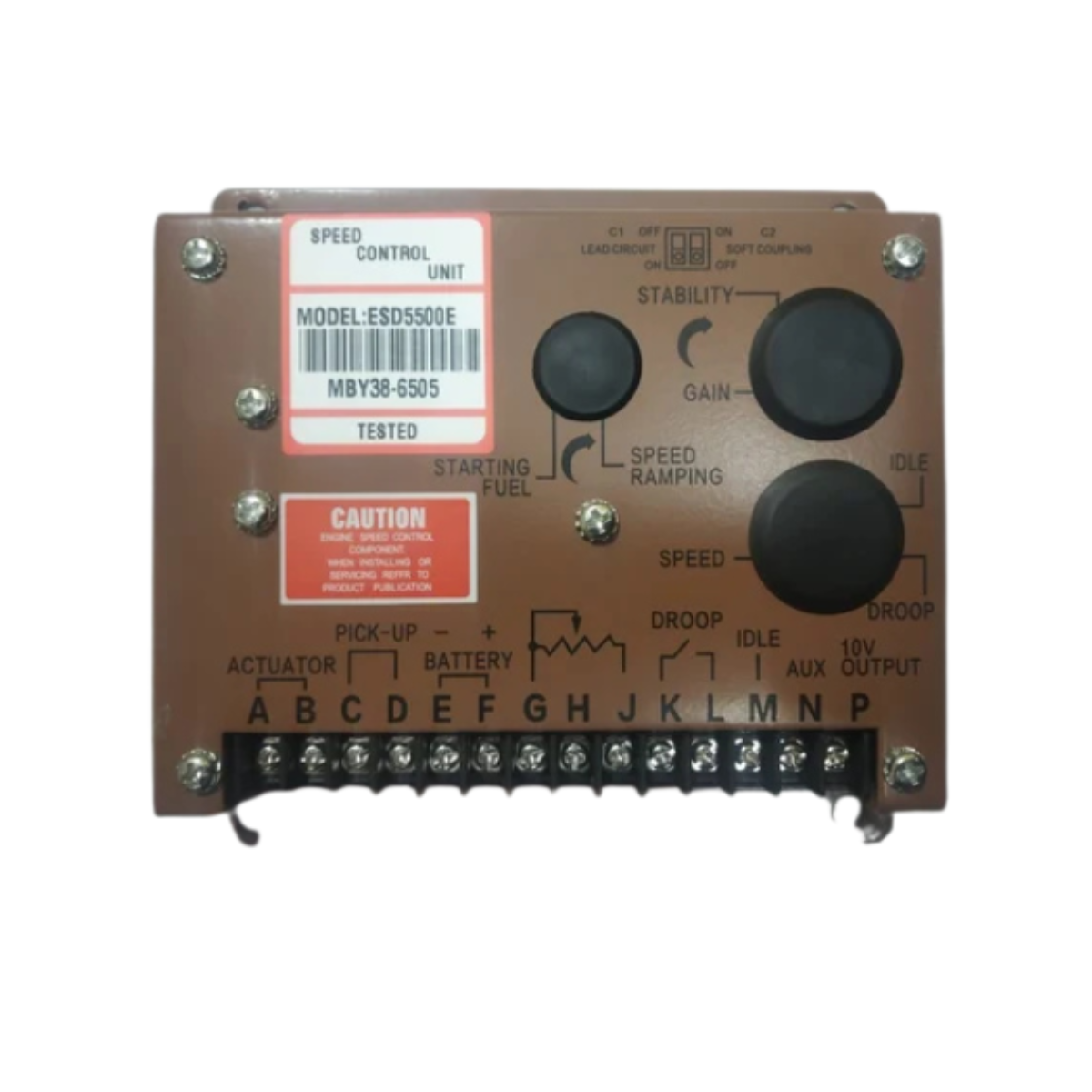

ESD 5500 Genset Speed Control Unit Electronic Engine Governor

ESD 5500 Genset Speed Control Unit Electronic Engine Governor

₹8,500

Specification	Details
Product Type	Electronic Speed Control Unit
Model	ESD5500E
Application	Genset and Engine Speed Control
Control Type	Closed-Loop Electronic Control
Speed Control Mode	Isochronous / Droop
Isochronous Operation	±0.25% or better
Governor Speed Range	1 to 7.5 kHz Continuous
Speed Drift with Temperature	±1% Maximum
Droop Range	1 to 5% Regulation
Speed Trim Range	±200 Hz
Remote Variable Speed Range	500 Hz to 7.5 kHz
Speed Sensor	Magnetic Speed Sensor
Actuator Type	Proportional Electric Actuator
Controller Design	Rugged Electronic Construction
Primary Use	Diesel Generator and Industrial Engine Systems

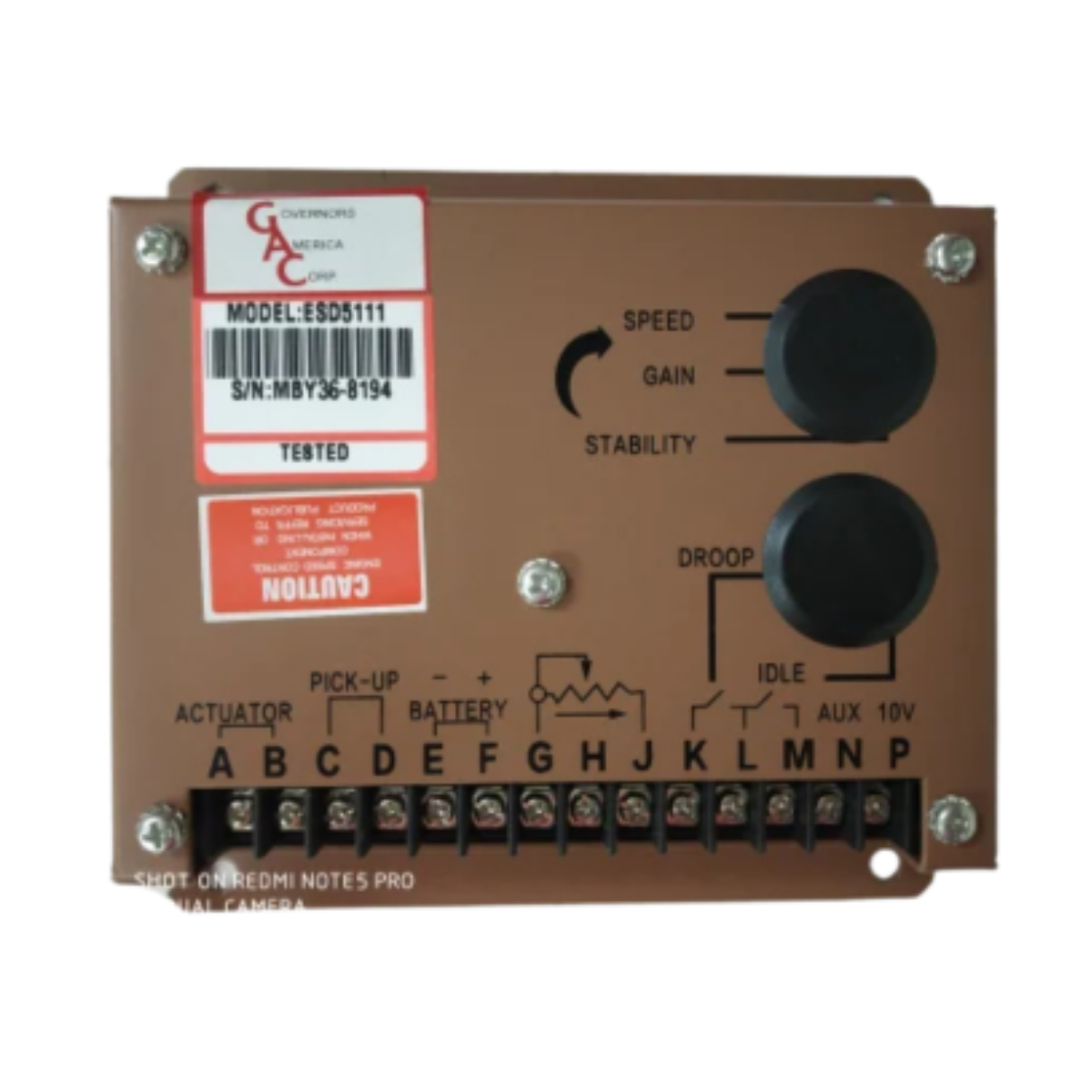

ESD 5111 Kirloskar Genset Speed Control Unit Electronic 12/24V DC Generator Engine

ESD 5111 Kirloskar Genset Speed Control Unit Electronic 12/24V DC Generator Engine

₹1,390

Product Name	ESD 5111 Kirloskar Genset Speed Control Unit
Model	ESD5111
Product Type	Electronic Engine Speed Control Unit
Application	Genset and Industrial Engine Speed Control
Supply Voltage	12V or 24V DC Battery System
Governing Range	1,000 to 7,500 Hz Continuous
Steady-State Stability	±0.25% or Better
Droop Regulation Range	1% to 5%
Speed Trim Range	±200 Hz
Speed Sensor Signal	0.5 to 120V RMS
Maximum Actuator Current	10A Continuous at 25°C
Power Consumption	50mA Continuous Plus Actuator Current
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +90°C
Relative Humidity	Up to 95%
Control Mode	Isochronous and Droop
Control System	Closed-Loop Electronic Speed Control
Speed Feedback	Magnetic Speed Sensor
Actuator Type	Proportional Electric Actuator
Usage	Generator Set, Engine and Power Generation Equipment
