Laser Engraving Machine

Jewelry Laser Engraving Machine - 30W Fiber Marking System

Name: Techno Laser Engineering
Address: Kh. No. 33/6, Ranaji Enclave, Najafgarh New Delhi 110043, Najafgarh, Delhi, 110043, IN
Telephone: 999505478
Price range: ₹250,000

(0/5 • 0 Reviews)

₹250,000

Availability

In Stock • Ready to ship

Cash On Delivery

7 Days Return

Secure Pay

Sold & Manufactured by: Techno Laser Engineering

GST No - 07AAWFT5573D1ZN

Member since 2024

Kh. No. 33/6, Ranaji Enclave, Najafgarh New Delhi 110043, Najafgarh, Delhi 110043

This product is sold and fulfilled by Techno Laser Engineering via Vyapari Store platform.

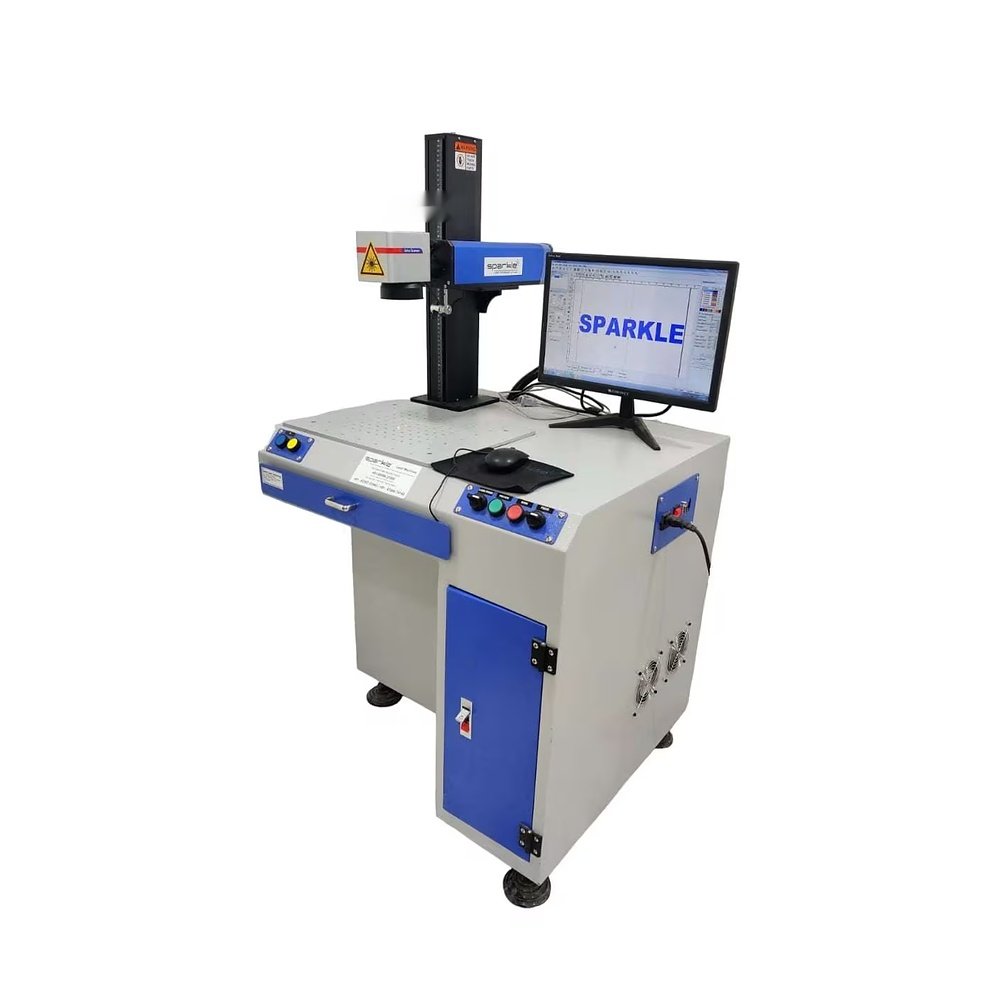

Jewelry laser engraving machine provides high-precision marking on precious metals like gold, silver, brass, and platinum. Equipped with an efficient fiber laser marking system, it delivers sharp text, serial numbers, and micro-patterns directly onto rings, pendants, and bracelets.

Technical Parameter	Specification Details
Laser Source Type	Pulsed Fiber Laser
Laser Output Power	30W (Optional 50W)
Laser Wavelength	1064 nm
Marking Field Area	110 mm x 110 mm (Standard)
Marking Speed	≤ 7000 mm/s
Minimum Line Width	0.01 mm
Minimum Character Height	0.15 mm
Repeatability Accuracy	±0.002 mm
Cooling Method	Built-in Air Cooling
Compatible Materials	Gold, Silver, Platinum, Brass, Stainless Steel, Titanium
Rotary Attachment	Included (for inside/outside ring & cylinder engraving)
Supported File Formats	PLT, DXF, AI, BMP, JPG, PNG
Operating Voltage	AC 110V/220V ±10%, 50/60Hz

Jewelry laser engraving machine is built to mark and personalize fine jewelry items. It uses modern fiber laser technology to create clean, sharp, and permanent marks on metals. Jewelers can easily engrave names, logos, dates, and detailed patterns on flat or curved surfaces. The machine is compact, runs quietly on a standard workbench, and produces zero mess during operation.

Key Features

High Precision Marking: Sharp beam quality allows clear micro-text engraving down to 0.15 mm height.
Rotary Axis Included: Dedicated rotating clamp helps engrave the inside and outside of rings and bangles smoothly.
Long Working Life: The solid-state fiber laser source runs for up to 100,000 hours with minimal maintenance.
Red Light Pointer: Twin red dots help you preview and position designs accurately before marking begins.
Air Cooling System: Built-in cooling fans keep the unit stable without needing external water chillers.

Applications

Custom name, date, and fingerprint marking on wedding rings and bands.
High-detail logo, hallmark, and purity stamping (e.g., 925, 18K, 22K) on jewelry items.
Deep metal engraving and thin sheet cutting on gold, silver, copper, and brass charms.
Precision barcode, QR code, and serial number marking for inventory tracking.

Technical Benefits

This fiber laser marking system uses direct digital beam deflection through high-speed galvo scanners. This means the beam moves rapidly and follows vector paths smoothly. Because it uses no physical needles, bits, or chemical inks, the surface remains free from physical stress or tool-wear errors. Operators simply load graphic files via USB, align the visual preview, and mark items in seconds.

Industry Usage

Jewelry retail shops, bespoke design studios, repair centers, and industrial metal workshops rely on this metal laser etching equipment for daily personalization tasks. Its clean, non-contact process makes it ideal for boutique retail counters as well as small-scale manufacturing floors that require steady, repeatable quality.
